Introduction:

Today we will be developing modern GitOps Solution for managing infrastructure and application deployments. We will be deploying full stack microservices application using GitOps principles with ArgoCD, Helm, Kubernetes and Github Actions.

We will be using two github repositories for this solution

Microservices repository AppsLog
Helm charts repository AppsLog-GitOps

Core Microservices:

Here is the breakdown of all microservices Tech Stack and roles.

Service	Role	Tech
service-app	React frontend to visualize logs	React.js
service-api	Exposes REST API to fetch logs	Flask (Python)
service-data	Persists and retrieves logs from DB	Flask + PostgreSQL
postgres	Centralized log storage	PostgreSQL

Architecture Overview:

This is how our final GitOps solution will looks like.

Tech Stack:

ArgoCD
Helm
Kubernetes

Pre-requists: Code Editor, Docker, Minikube

Continous Integration:

Inside AppsLog repository, I have created git action workflow for CI. Using this workflow every code push creates a new release with version tags like v1.1.0 and Inside release pipeline we are creating docker images with newest version tags and pushing those images to Dockerhub. We are also updating version tags inside AppsLog-GitOps repository values.yaml file.

This is how our final git actions CI workflow looks like:


    name: Release Pipeline

    on:
    push:
        branches:
        - main

    jobs:
    semantic-release:
        name: Release Pipeline
        runs-on: ubuntu-latest
        concurrency: release
        permissions:
        id-token: write
        contents: write

        steps:
        - name: Checkout Repository
            uses: actions/checkout@v3
            with:
            fetch-depth: 0

        - name: Python Semantic Release
            id: release
            uses: python-semantic-release/python-semantic-release@master
            with:
            github_token: ${{ secrets.GIT_ACTIONS_SECRET }}

        # --- Build and Push Docker Image ---
        - name: Set up Docker Buildx
            uses: docker/setup-buildx-action@v3

        - name: Log in to Docker Hub
            uses: docker/login-action@v3
            with:
            username: ${{ secrets.DOCKERHUB_USERNAME }}
            password: ${{ secrets.DOCKERHUB_TOKEN }}

        - name: Build and Push Docker Image
            uses: docker/build-push-action@v6
            with:
            context: ./service-api
            file: ./service-api/Dockerfile
            push: true
            tags: |
                ${{ secrets.DOCKERHUB_USERNAME }}/service-api:latest
                ${{ secrets.DOCKERHUB_USERNAME }}/service-api:v${{ steps.release.outputs.version }}

        - name: Build and Push Docker Image
            uses: docker/build-push-action@v6
            with:
            context: ./service-data
            file: ./service-data/Dockerfile
            push: true
            tags: |
                ${{ secrets.DOCKERHUB_USERNAME }}/service-data:latest
                ${{ secrets.DOCKERHUB_USERNAME }}/service-data:v${{ steps.release.outputs.version }}

        - name: Build and Push Docker Image
            uses: docker/build-push-action@v6
            with:
            context: ./service-app
            file: ./service-app/Dockerfile
            push: true
            tags: |
                ${{ secrets.DOCKERHUB_USERNAME }}/service-app:latest
                ${{ secrets.DOCKERHUB_USERNAME }}/service-app:v${{ steps.release.outputs.version }}
            provenance: false
            build-args: |
                APP_ENV=production
                REACT_APP_API_URL="service-api:5000"
                REACT_APP_API_URL_DATA="service-data:5000"

        - name: Logout from Docker Hub
            run: docker logout

        - name: Checkout gitops repo
            uses: actions/checkout@v4
            with:
            repository: shujaakbar2020/AppsLog-GitOps
            token: ${{ secrets.GIT_ACTIONS_SECRET }}}   # token with write permission
            path: gitops-repo
            fetch-depth: 0

        - name: Update image tag in gitops repo (values.yaml)
            run: |
            git config --global user.email "shujaakbar2020@gmail.com"
            git config --global user.name "Shuja Akbar"
            cd /home/runner/work/AppsLog/AppsLog/gitops-repo
            git checkout main
            git remote show origin
            git remote set-url origin https://${{ secrets.GIT_ACTIONS_USER }}:${{ secrets.GIT_ACTIONS_SECRET }}@github.com/shujaakbar2020/AppsLog-GitOps.git
            FILE=values.yaml
            yq eval ".service-app.image.tag = "v${{ steps.release.outputs.version }}"" -i "$FILE"
            yq eval ".service-api.image.tag = "v${{ steps.release.outputs.version }}"" -i "$FILE"
            yq eval ".service-data.image.tag = "v${{ steps.release.outputs.version }}"" -i "$FILE"
            git add "$FILE"
            git commit -m "chore: update image tag to ${{ steps.release.outputs.version }}"
            git log
            git push origin main

Releases:

Every time above git actions pipeline runs successfuly, it creates a new release for any feature, fix or any chore update. We mark every release with git tags.

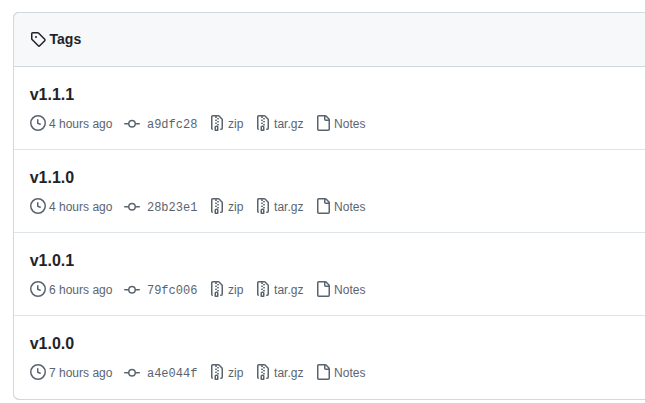

Git tags:

DockerHub tags:

Update GitOps repository:

We also update the AppsLog-GitOps repository values.yaml file with updated docker image tags


    service-api:
      image:
        repository: saakbar/service-app
        pullPolicy: IfNotPresent
        tag: "v1.0.1"
    service-data:
      image:
        repository: saakbar/service-app
        pullPolicy: IfNotPresent
        tag: "v1.0.1"

Continous Deployment:

We will be using ArgoCD for CD. ArgoCD runs inside the Kubernetes cluster and continuously monitors the connected Git repository. We will be deploying helm charts for our microservices. We have created these helm charts inside our AppsLog-GitOps repository.

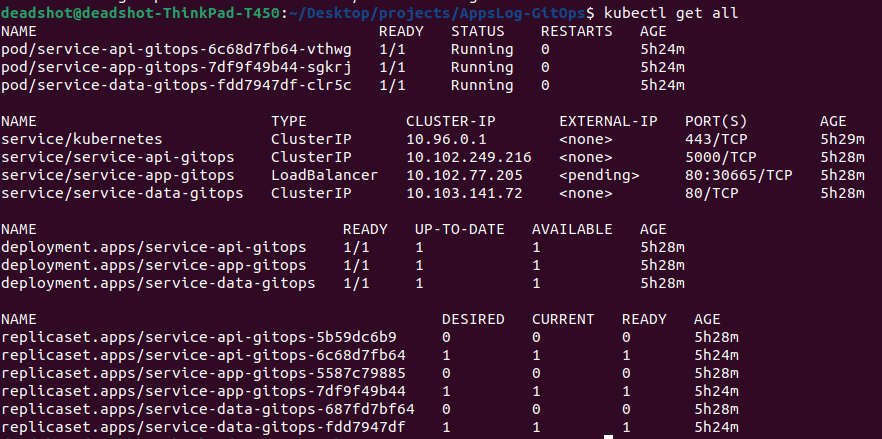

These are list of resources created by our helm charts.

Conclusion:

This project demonstrates a production-grade GitOps workflow using:

GitHub Actions -- CI
Docker -- Containerization
Helm -- Packaging
Kubernetes -- Orchestration
ArgoCD-- GitOps Engine

Git is now the control plane.

📂 You can explore the full implementation here:

Microservices: github.com/shujaakbar2020/AppsLog

GitOps Config: github.com/shujaakbar2020/AppsLog-GitOps

Built with ❤️ by Shuja Akbar | DevOps Engineer | Open Source Enthusiast. You can reach me here any time. I will also be sharing more DevOps related problems, keep visiting me.
