Elasticsearch Cluster

#elasticsearch

#cluster

#nosql

#nodes

In this tutorial we will be creating elasticsearch cluster with:

2 Master Nodes
4 Data Nodes
1 Ingest Node
1 Machine Learning Node
1 Transform Node

Pre-requists: Kubernetes cluster on AWS, AZURE, GCP

Install CRDs for ECK:

We will start by installing CDRs for Elastic Cloud on Kubernetes(ECK).


    kubectl create -f https://download.elastic.co/downloads/eck/2.11.0/crds.yaml

Once you run above command, following Elastic resources will be created


    customresourcedefinition.apiextensions.k8s.io/agents.agent.k8s.elastic.co created
    customresourcedefinition.apiextensions.k8s.io/apmservers.apm.k8s.elastic.co created
    customresourcedefinition.apiextensions.k8s.io/beats.beat.k8s.elastic.co created
    customresourcedefinition.apiextensions.k8s.io/elasticmapsservers.maps.k8s.elastic.co created
    customresourcedefinition.apiextensions.k8s.io/elasticsearches.elasticsearch.k8s.elastic.co created
    customresourcedefinition.apiextensions.k8s.io/enterprisesearches.enterprisesearch.k8s.elastic.co created
    customresourcedefinition.apiextensions.k8s.io/kibanas.kibana.k8s.elastic.co created
    customresourcedefinition.apiextensions.k8s.io/logstashes.logstash.k8s.elastic.co created

Install ECK Operator:

Now, we will instal ECK operator with RBAC rules with following command.


    kubectl apply -f https://download.elastic.co/downloads/eck/2.11.0/operator.yaml

Note: This will create a namespace elastic-system.

Deploy Elasticsearch:

Finally we will be deploying the Elasticsearch cluster with different node types. Here is configuation files for kubernetes.


    apiVersion: elasticsearch.k8s.elastic.co/v1
    kind: Elasticsearch
    metadata:
      name: elastic-cluster
    spec:
      version: 8.12.0
      nodeSets:
      - name: master-nodes
        count: 2
        config:
          node.roles: ["master"]
          node.store.allow_mmap: false
      - name: data-nodes
        count: 4
        config:
          node.roles: ["data"]
          node.store.allow_mmap: false
      - name: ingest-nodes
        count: 1
        config:
          node.roles: ["ingest"]
          node.store.allow_mmap: false
      - name: machine-learning-nodes
        count: 1
        config:
          node.roles: ["ml"]
          node.store.allow_mmap: false
      - name: transform-nodes
        count: 1
        config:
          node.roles: ["transform"]
          node.store.allow_mmap: false

Elasticsearch cluster with total 9 nodes is deployed on kubernetes cluster. With different roles for every node.

Default username for elasticsearch is elastic. You can check the password with this command.


    kubectl get secret -n elastic-system elastic-cluster-es-elastic-user -o go-template='{{.data.elastic | base64decode}}'

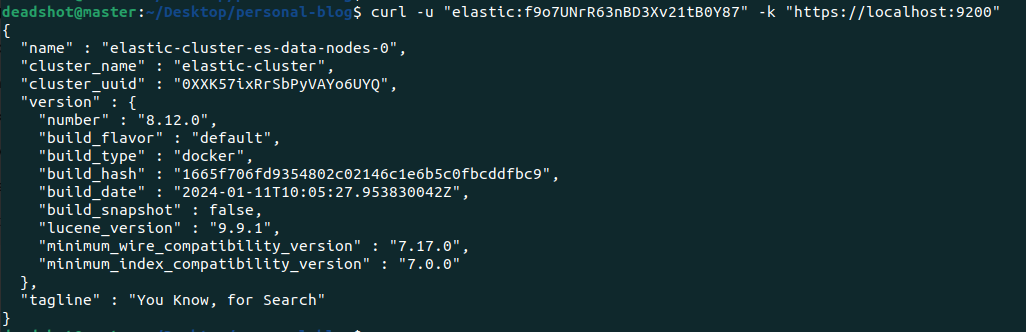

We can verify and check the health of the elastic cluster with these command:


    kubectl port-forward service/quickstart-es-http 9200
    curl -u "username:password" -k "https://localhost:9200"

Elasticsearch cluster creation with different node roles is done. Also you can create ingress component to make your elasticsearch cluster public.

Happy clustering elasticsearch ☸☸☸

If you have any issue. You can reach me here any time. We will also be sharing deployment for kibana and logstash in future, keep visiting us.
